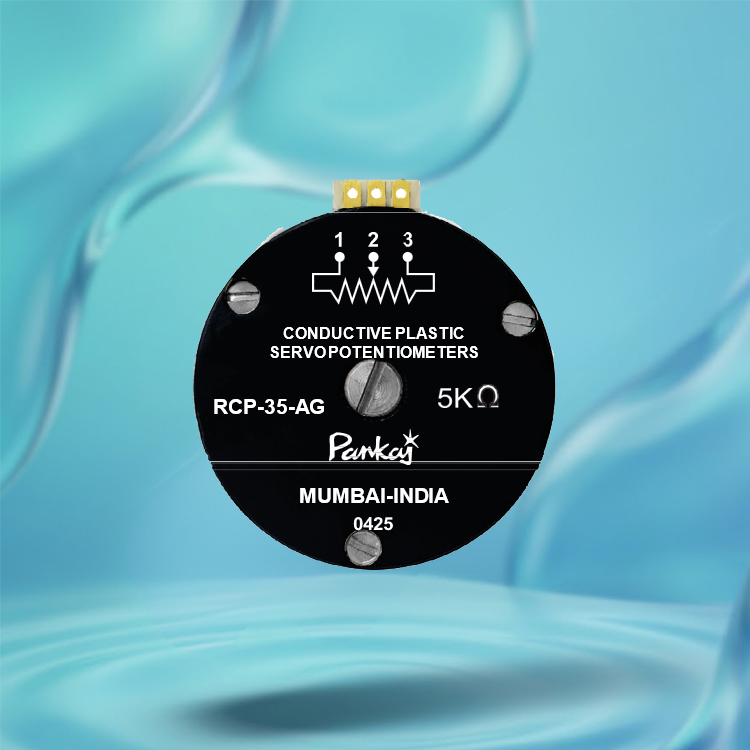

Rotary Conductive Plastic Servo Potentiometer RCP-35-AG (Front View)

Rotary Conductive Plastic Servo Potentiometer RCP-35-AG (Front View)

CE Marked certified product

CE Marked certified product
Rotary Conductive Plastic Servo Potentiometer RCP-35-AG
Rotary Conductive Plastic Servo Potentiometer RCP-35-AG (Front View)
CE Marked certified product
— PANKAJ POTENTIOMETERS

Rotary Conductive Plastic Servo Potentiometer RCP-35-AG

Model: RCP-35-AG

Rotary Conductive Plastic Servo Potentiometer from PANKAJ is engineered to provide long rotational life and consistent, stable output across a wide temperature range. Designed to perform reliably even in high-moisture and harsh environmental conditions, it ensures smooth, noise-free operation with infinite resolution. Built using advanced conductive plastic technology, this potentiometer supports both manual and mechanized applications. Its precision, durability, and repeatability make it ideal for servo systems, automation, drives, instrumentation, process control, and other industrial applications requiring accurate and dependable position feedback.

Model Information

RCP-35-AG (RCP-35-AG)

Get Product Information

Standard Features

  • Infinite Resolution, Low CRV
  • Gold Plated Wiper
  • Servo Mount
  • Aluminium Housing
  • Brass Nickle Plated Shaft
  • Gold Plated Studs
  • Long Rotational Life
  • Sturdy Construction

Optional Features

N/A

Applications

  • Drives, Automation
  • Rotary sensing
  • Joystick
  • Feedback
  • Tension Control

Technical Specifications

Comprehensive data for integration into your engineering workflows.

Standard Resistance Values

1K, 5K & 10 KΩ, Others on request

Resistance Tolerance

Standard

±25%

Special

±15%

Resolution

Essentially Infinite

Rotational Life Expectancy

10 Lakh Shaft Revolutions

Temp. Coefficient of Resistance

±500 ppm/˚C

Maximum Wiper Current

1 mA

Effective Electrical Angle

355˚

Dielectric Strength at Sea Level

Min. 1000VAC for 1 minute

Temperature Range

0˚ to 70˚C

Weight

60 gms

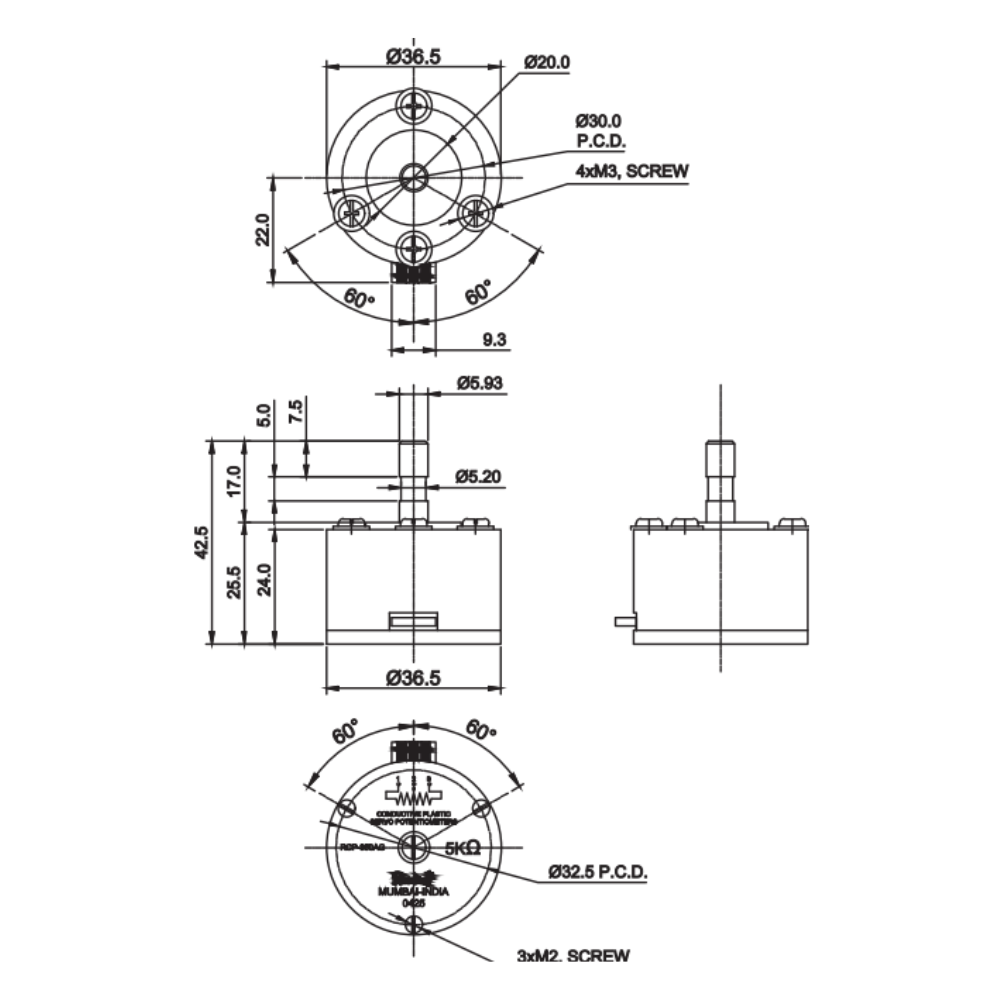

Technical Diagram

Click to view full size

Ordering Information

Example: RCP-35-AG, 1K

Model No.

Resistance Value in ohms

RCP-35-AG

1K, 5K, 10K

Scroll horizontally to view full table
