RCP-22-B
Rotary Conductive Plastic Servo Potentiometer - RCP-22-B
Model: RCP-22-B
Rotary Conductive Plastic Servo Potentiometer from PANKAJ offers long rotational life, stable output in wide temperature range, high moisture environment, with infinite resolution for manual or mechanized application in variety of fields.
Model Information
RCP-22-B (RCP-22-B)
Get Product Information
Standard Features
- Infinite Resolution, Low CRV
- Gold Plated Wiper
- Bush Mounting
- Aluminium Housing
Optional Features
- Brass Nickle Plated Shaft
- Gold Plated Studs
- Long Rotational Life
- Sturdy Construction
Applications
- Drives, Automation
- Rotary sensing
- Joystick
- Feedback
- Tension Control
- Valves Control & many more.
Technical Specifications
Comprehensive data for integration into your engineering workflows.
* 1 & 3 Fixed terminals, 2 Variable, 4 Center terminal
|
Standard Resistance Values |
1K, 5K & 10 KΩ, Others on request |
|
Resistance Tolerance |
|
|
Standard |
±25% |
|
Special |
±15% |
|
Resolution |
Essentially Infinite |
|
Rotational Life Expectancy |
1 Lakh Shaft Revolutions |
|
Temp. Coefficient of Resistance |
±500 ppm/˚C |
|
Maximum Wiper Current |
1 mA |
|
Effective Electrical Angle |
(1) 340˚ (2) 100˚ (3) 60˚ |
|
Dielectric Strength at Sea Level |
Min. 1000VAC for 1 minute |
|
Temperature Range |
0˚ to 70˚C |
|
Weight |
15 gms |

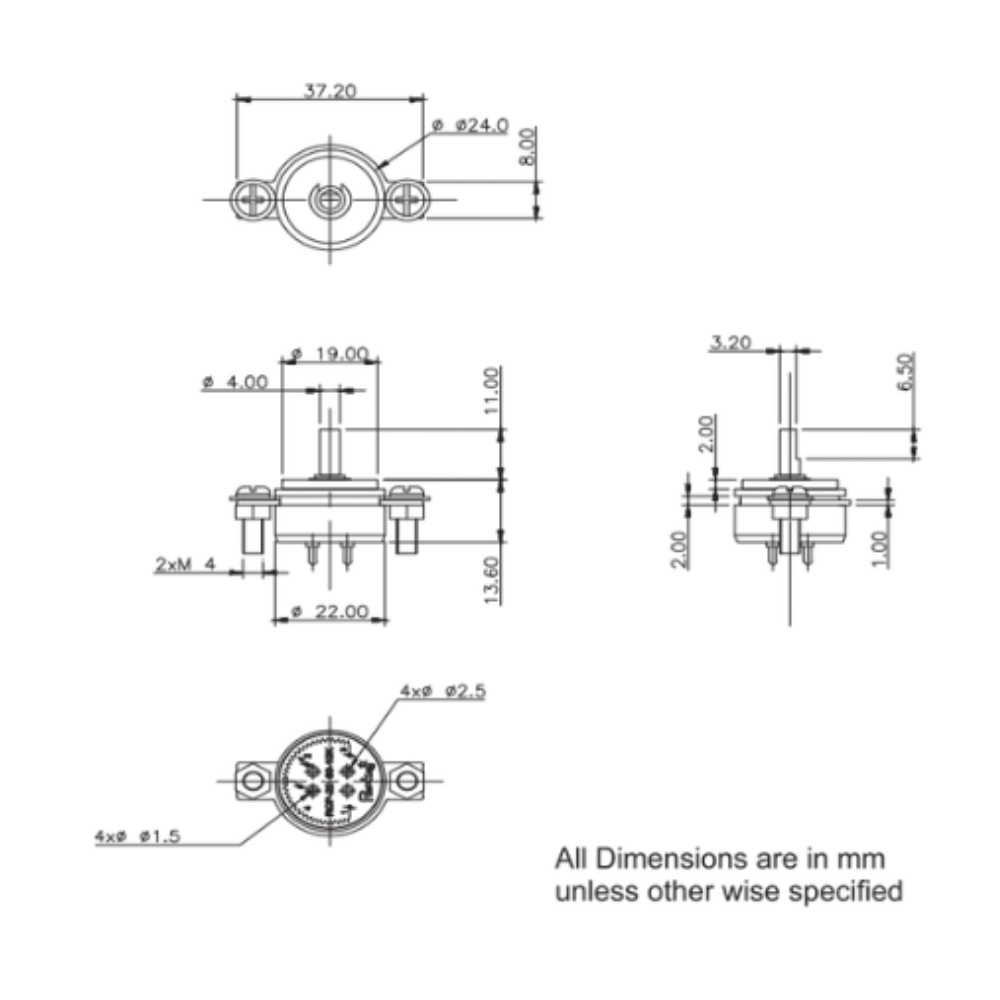

Technical Diagram
Click to view full size
Ordering Information
Example: RCP-22-B, 5K
|
Model No. |
Resistance Value in ohms |
|
RCP-22-B |
1K, 5K, 10K |
