Hollow Shaft Conductive Plastic Servo Potentiometer Model: HSCP-50-A

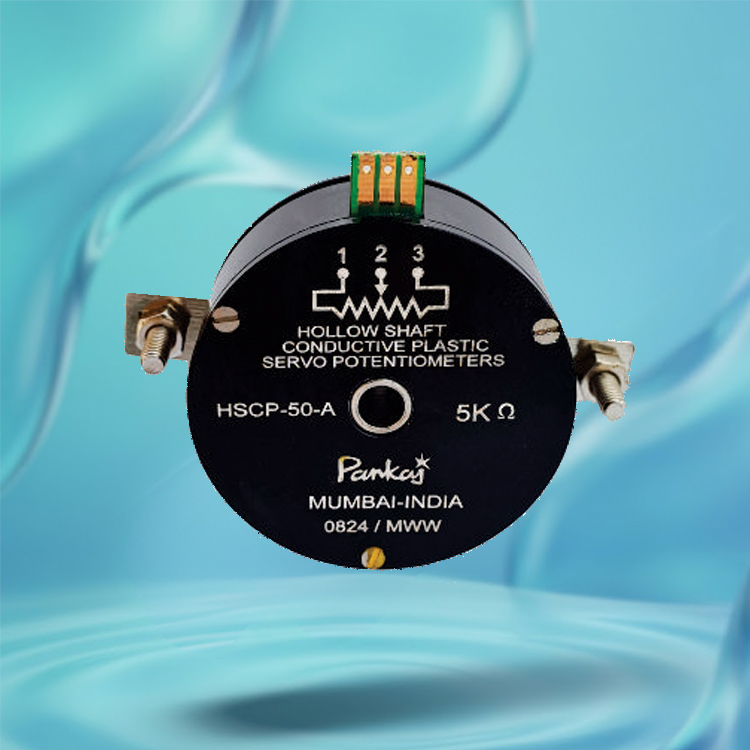

HSCP-50-A - Front View
"C" Clamp
Hollow Shaft Conductive Plastic Servo Potentiometer Model: HSCP-50-A
Model: HSCP-50-A
Hollow Shaft Conductive Plastic Servo Potentiometer from PANKAJ offers long rotational life, stable output over a wide temperature range, and reliable performance in high-moisture environments. It provides infinite resolution for both manual and mechanized applications across a variety of fields. Spring hard stainless steel C-clamps are provided for mounting.
Model Information
HSCP-50-A (HSCP-50-A)
Get Product Information
Standard Features
-
Infinite Resolution, Low CRV
-
Gold Plated PCB
-
Precious Metal Multi Wire Wiper Contact
-
Black Anodized Aluminum Housing
-
Stainless Steel Hollow Sleeve
-
Relimate Connector PCB
-
Long Rotational Life
-
Double Ball Bearings
Optional Features
N/A
Applications
- Automation
- Rotary sensing
- Dancer POT
- Feedback
- Tension Control
Technical Specifications
Comprehensive data for integration into your engineering workflows.
|
Standard Resistance Values |
1K, 5K & 10K Ω, Others on request |
|
Resistance Toletance Standard Special |
±25% ±15% |
|
Power Rating |
3 Watt @ 40˚C |
|
Resolution |
|
|
Rotational Life Expectancy |
10 Lakh Shaft Revolutions |
|
Temp. Coefficent of Resistance |
±500 ppm/˚C |
|
Maximum Wiper Current |
1 mA |
|
Effective Electrical Angele |
355˚ |
|
Dielectric Strength at Sea Level |
Min. 1000VAC for 1 minute |
|
|
0˚ to 70˚C |

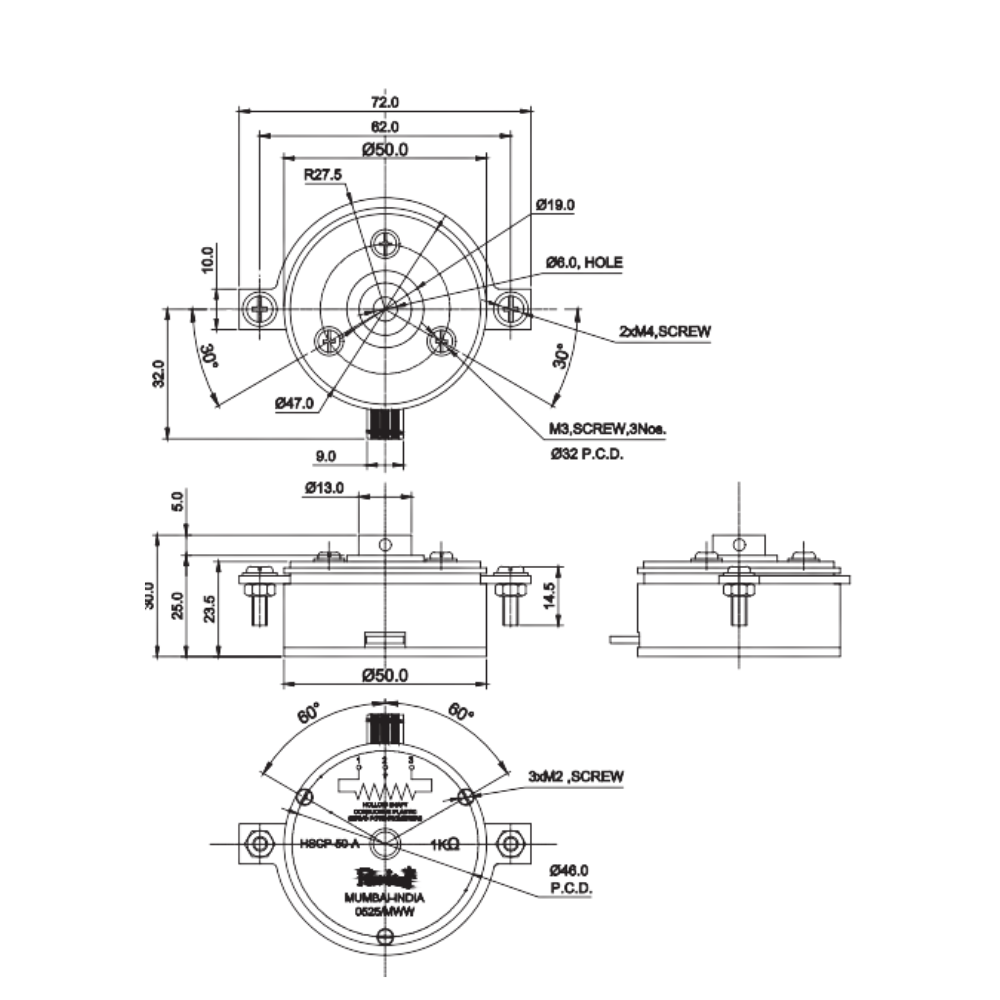

Technical Diagram
Click to view full size
Other Options
Click to view full size

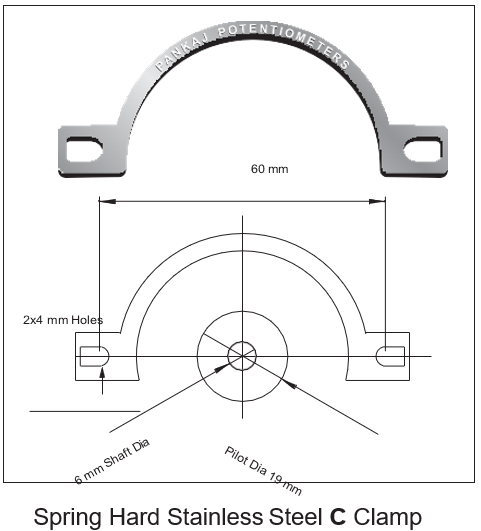

"C" Clamp
Ordering Information
Example: HSCP-50-A, 1K
|
Model No. |
Resistance Value in ohms |
|
HSCP-50-A |
1K, 5K, 10K |
