Wire Wound Potentiometer Model: JR.W-1
Wire Wound Potentiometer Model: JR.W-1
Model: JR.W-1
Model JR.W-1 enjoys the privilege of being the only Indian Product Manufactured to meet Defense specifications DEF 5121, JSS - 50502.
Model Information
JR.W-1 (JR.W-1)
Get Product Information
Standard Features
- Brass Nickel Plated Bush & Spindle
- Tin Plated Terminals
- High Engineering Glass Filled Molded Housing
- Panel & Spindle sealing, hence can be used in harsh environmental condition
- Flame Proof Housing
- IP-65 Protection
Optional Features
- Anti Rotating Mounting Plate
- Various Shaft Lengths with different designs
Applications
- Temperature Controllers,
- Power Supplies,
- AC/DC Motor Drives,
- Process Control Equipments,
- Test and Measuring Instruments,
- Control Panels,
- Offset Settings & many more.
Technical Specifications
Comprehensive data for integration into your engineering workflows.
Military Grade Specifications
|
Resistance Range |
50 Ω to 10 KΩ +10% |
|
Power Rating |
0.5 Watt @ 70°C |
|
Stability |
+2% |
|
TCR |
+150 ppm/°C (Max.) |
|
Temperature Range |
T 40/70 (-40°C to + 70°C) |
|
Damp Heat |
H 12 (2 Cycles 21 Days) |
|
Air Pressure |
P 16:8.5 kpa |
|
Acceleration (Steady State) |
A 10: 170 m/s |
|
Impact (Shock) |
S 12: 500 m/s, 11 ms |
|
Vibration |
V 12: 10 to 2000 Hz. 100 m/s |

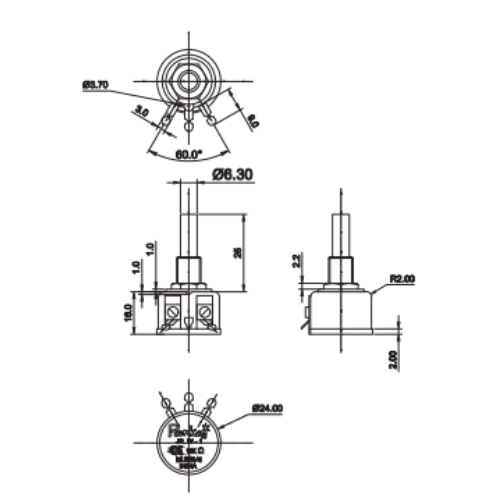

Technical Diagram
Click to view full size
Ordering Information
Example: JR. W-1, 10K, 25mm
|
Model No. |
Resistance Value, Ohms |
Shaft Length in mm |
Other Options |
|
JR.W-1. |
50, 100, 150, 200, 250, 500, 1K, |
19 mm or 25 mm as required |
F - Flattened Shaft |
|
|
2K, 2K5, 3K, 5K, 10K |
|
P - Locking Plate L - Shaft Locking Nut |
