Square Conductive Plastic Potentiometer Model: SQCP-55
ISO 9001-2015
Mark Certified Products
Square Conductive Plastic Potentiometer Model: SQCP-55
Model: SQCP-55
Square Conductive Plastic Potentiometer SQCP-55 The latest product in Conductive plastic range from PANKAJ is best suited for Joy Stick, Industrial controls & multi ganged mechanical feedback. 6mm square hollow shaft allows many potentiometers to be operated by single actuator. Modular type design saves lot of space.
Model Information
SQCP-55 (SQCP-55)
Square Conductive Plastic Potentiometer Model: SQCP-55
Get Product Information
Standard Features
- 55mm Square Glass Filled Engineering Plastic Body
- 11mm thick
- 6mm Square Hollow Rotor
- Multi Wire Precious Metal Wiper Contact
- Gold Plated terminals
- Mounting on Two or Four M3 Screws
Optional Features
- Tapping at 90˚, 180˚, 270˚
- Different Electrical Angle of Rotation
- Dead band as required
- 330° Mechanical Angle of Rotation of Rotor
- Ganged upto ‘n’ number of piece with 6 mm square Rod
Applications
- Automation
- Rotary sensing
- Feedback
- Industrial controls
- Joy Stick & many
- Center Tap
- Multi ganged mechanical feedback
Technical Specifications
Comprehensive data for integration into your engineering workflows.
|
Standard Resistance Values |
1K, 5K & 10 KΩ, Others on request |
|
Resistance Tolerance |
±25% |
|
Wiper Current (Recommended) |
<0.1 μA |
|
Power Rating |
0.5 W at 40°C |
|
Maximum Supply Voltage |
50 V with 5K and 70 V with 10K |
|
Electrical Angle of Rotation |
355° |
|
Insulation Resistance |
2000 MΩ @ 500 VDC |
|
H. V. Test |
No damage for 1 min at 1500 VAC |
|
Operating Temperature Range |
0 - 70°C |
|
IP Protection |
IP-40 |

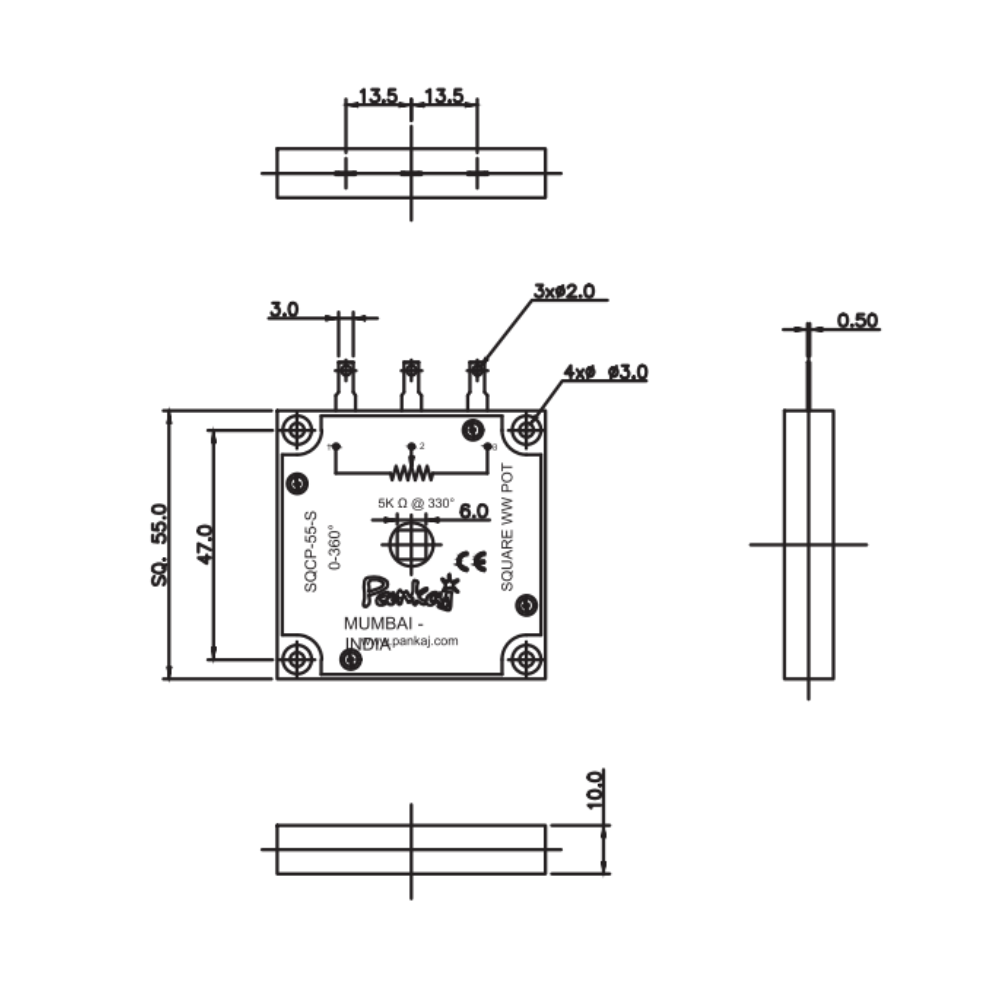

Technical Diagram
Click to view full size
Ordering Information
Example: SQCP-55, 1K
|
Model No. |
Resistance Value in ohms |
|
SQCP-55 |
1K, 5K, 10K |
