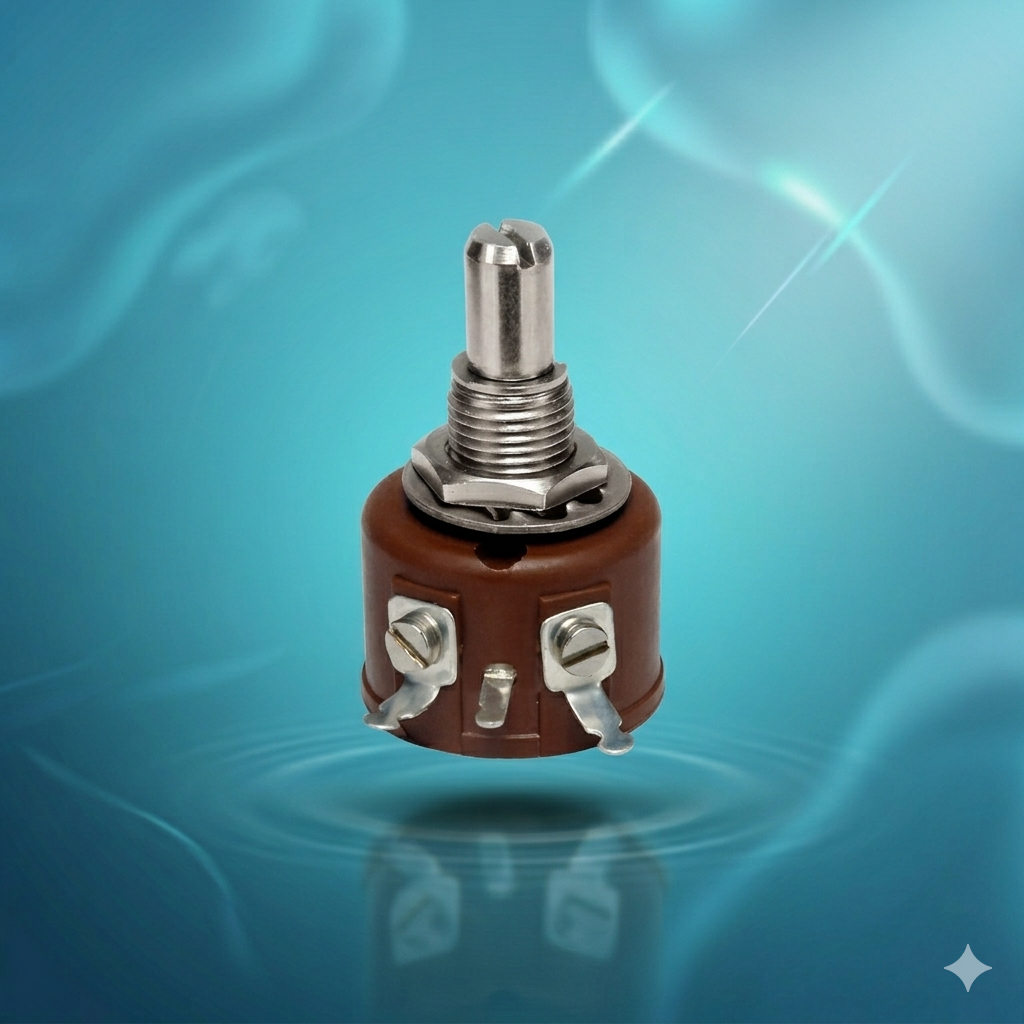

Model: R.W-1 M (Metal Shaft)
Other options - Shaft dia. 6 mm, length 40 mm

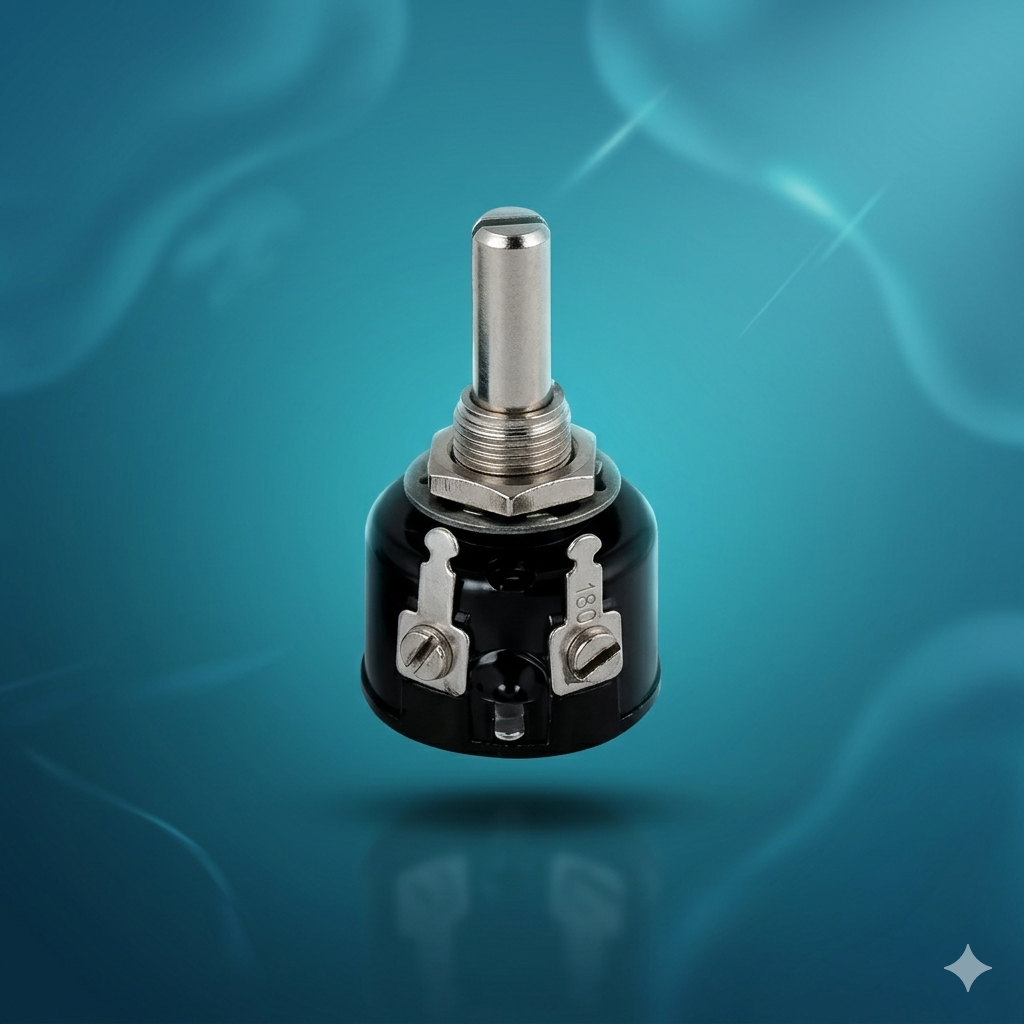

Other option - Lugs at 180°
Other option - Shaft dia. 6 mm, length 25 mm
Single Turn Wire Wound Potentiometer Model: R.W-1 M (METAL SHAFT)
Model:
The most sought after product in Domestic and International market from PANKAJ, Single Turn Wire Wound Potentiometer Model: R.W-1 M (Metal Shaft) it’s presence since over five decades. Offers best value for money in manual setting application.
Model Information
1 Watt Potentiometers
Get Product Information
Standard Features
- Brass Nickel Plated Bush & Spindle
- Tin Plated Terminals
- High Grade Engineering Moulded Plastic Housing
Optional Features
- Anti Rotating Mounting Plate
- Various Shaft Lengths and Designs
- Shaft Locking Nut
Applications
- Temperature Controllers,
- Power Supplies, AC/DC Motor Drives,
- Process Control Equipments,
- Test and Measuring Instruments,
- Control Panels, Offset Settings & many more.
Technical Specifications
Comprehensive data for integration into your engineering workflows.
| Resistance Range | 25Ω to 25KΩ |
| Resistance Tolerance | ±10% Standard, ±5% Special |
| Power Rating | 1 Watt @ 40°C |
| End Resistance | 0.2Ω or 0.02% which ever is greater |
| Elec. Angle of Rotation | 265° + 15° |
| Maximum Working Voltage | 250VDC |
| Insulation Resistance | 200MΩ @ 500VDC |
| Voltage Proof | 750VAC for 1 Min. At Sea level |
| TCR of Resistance Wire | 150 ppm/°C |
| Rotational Life Expectancy | 20,000 Cycles at 15 RPM |
| Temperature Range | 0 – 70°C. |

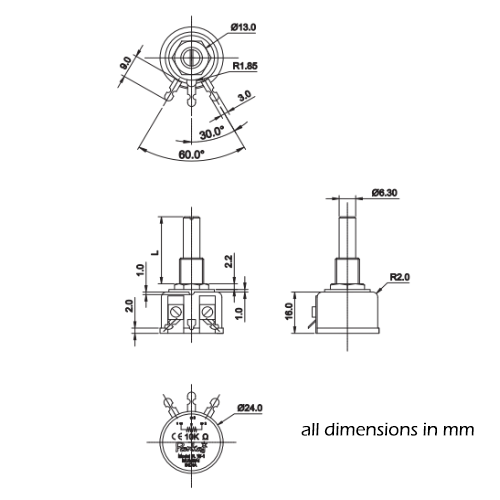

Technical Diagram
Click to view full size
Other Options
Click to view full size

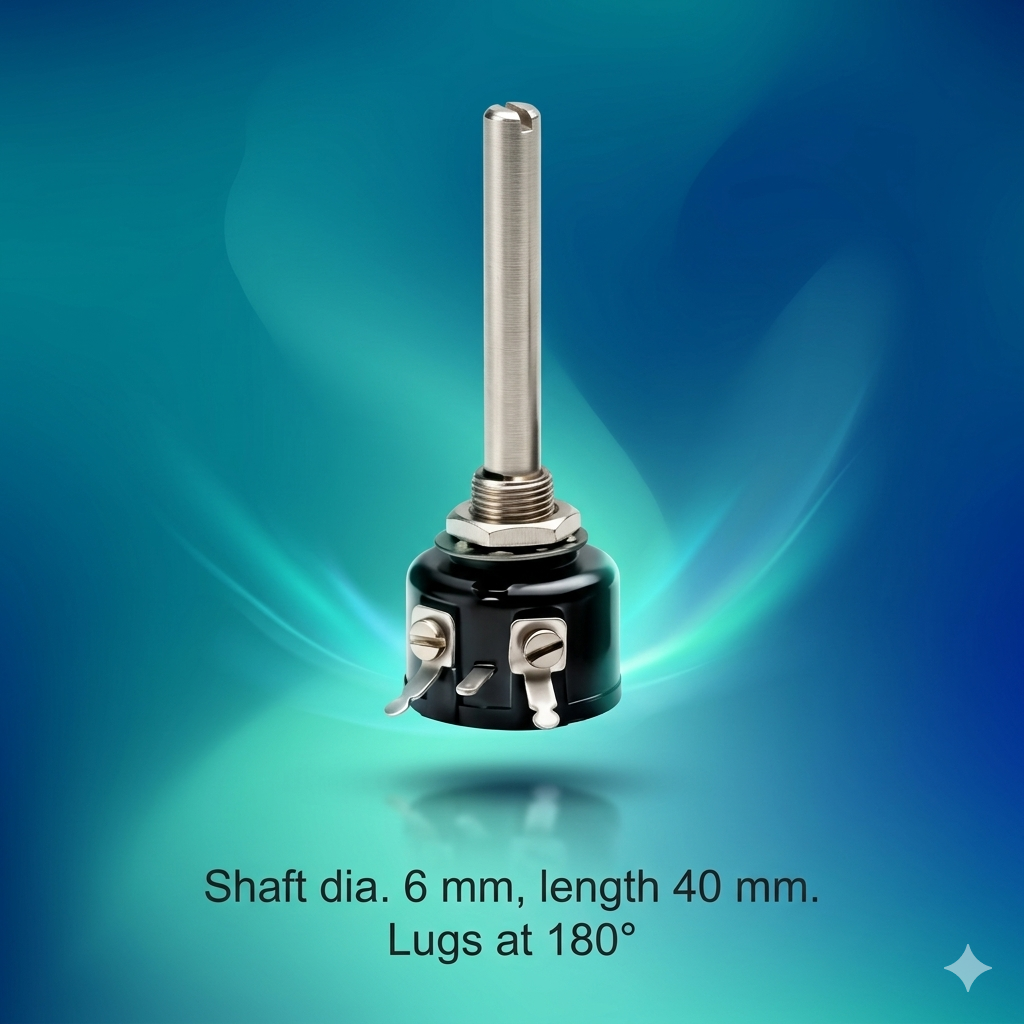

Shaft dia. 6 mm, length 40 mm
Lugs at 180
Shaft dia. 6 mm, length 25 mm
Ordering Information
Ordering Information Example: R.W-1, 10K, 25mm
| Model No. | Resistance Value | Shaft Length in mm | Other Options |
| R. W-1 | 25, 50, 100, 150, 200, 250, 500, 1K, 2K, 2K5, 3K, 5K, 10K, 20K, 25K |
Standard: 19mm or 25mm Other shaft length: 12.7mm, 16mm, 16 Flat, 19Flat |
F – Flattened Shaft P – Locking Plate L – Shaft Locking Nut |
