Single Turn Conductive Plastic Potentiometer SCP-25
Model:
Single Turn Conductive Plastic Potentiometer SCP-25 from PANKAJ is designed to deliver long rotational life and stable, noise-free output across a wide temperature range and high-moisture environments. Built with advanced conductive plastic technology, it offers infinite resolution and smooth performance for both manual and mechanized applications. The SCP-25 ensures high reliability, accuracy, and repeatability, making it suitable for demanding industrial uses such as drives, automation systems, process control equipment, instrumentation, and other applications requiring precise and dependable variable control.
Model Information
SCP 25
Get Product Information
Standard Features
w Infinite Resolution, low CRV
w Gold Plated Wiper & PCB
w Long Rotational Life
w Sturdy Construction
w Brass Nickel Plated Bush and Shaft
Optional Features
- Thermoplastic Housing
- Relimate Connector Compatible Termination
- Various Shaft Lengths and Designs
Applications
- Automation
- AC/DC Motor Drives
- Process Control Equipments
- Test and Measuring Instruments
- Control Panels
- Offset Settings & many more.
Technical Specifications
Comprehensive data for integration into your engineering workflows.
|
Standard Resistance Values |
1KΩ, 5KΩ, 10KΩ, 100KΩ, 220KΩ |
|
Resistance Range |
|
|
Standard |
± 25% |
|
Special |
± 15% |
|
Power Rating |
1 Watt @ 40˚C |
|
Resolution |
Essentially Infinite |
|
Rotational Life Expectancy |
1 Lakh Shaft Revolutions |
|
Temp. Coefficient of Resistance |
±500 ppm/˚C |
|
Maximum Wiper Current |
1 mA |
|
Effective Electrical Angle |
300˚ |
|
Dielectric Strength at Sea Level |
Min. 1000 VAC for 1 minute |
|
Temperature Range |
0˚ to 100˚C |

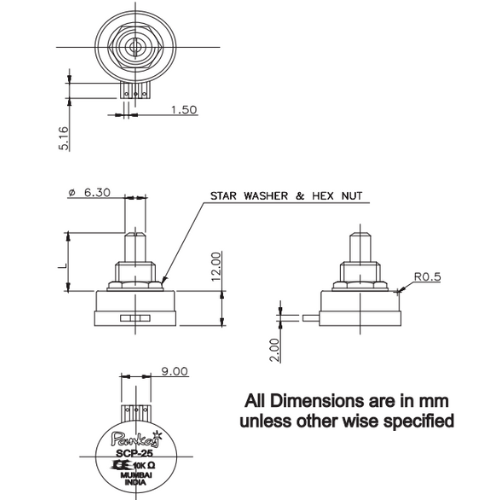

Technical Diagram
Click to view full size
Ordering Information
Example: SCP-25, 1K, 19 mm
|
Model No. |
Resistance Value in ohms |
Shaft Length in mm |
|
SCP-25 |
1K, 5K, 10K, 100K, 220K |
19 mm or 25 mm as required |
