Linear Motion Wire Wound Potentiometer Model: LMP-WW
Linear Motion Wire Wound Potentiometer Model: LMP-WW
Model: LMP-WW
This product is the result of PANKAJ's Policy to develop new product as import substitute.
The efforts were acknowledged by winning an award for BEST PRODUCTS DEVELOPED BY AN INDIAN EXHIBITOR at ELECRAMA 2002. The product has wider application in linear motion measurement & controls. Few applications are Press Break, Vacuum Circuit Breakers, Industrial machines & others.
Model Information
LMP-WW (LMP-WW)
Get Product Information
Standard Features
- 32mm Square Black Aluminum Anodised Housing
- Sinter Bush Bearing
- 6mm Stainless Steel Rod/ Shaft
- Gold Plated Wiper Contacts
- Solenoid Connector
- Ball Joint Coupling (Standard)
- Clamps for Fitting
Optional Features
- Rod End Bearings on One Side
- Rod End Bearings on Both Sides
- External Spring Return
- Internal Spring Return
Applications
- Process Control Equipments,
- Test and Measuring Instruments,
- Vacuum Circuit Breaker,
- Linear Distance Measurement & many more.
Technical Specifications
Comprehensive data for integration into your engineering workflows.
Standard, Ball Joint Coupling
|
Resistance Range |
100 Ω to 5 KΩ per 50 mm of Stroke |
|
Power Rating |
0.75 Watt per 50 mm of Stroke |
|
Linearity |
Better than 1% |
|
Insulation Resistance |
500 MΩ at 500 VDC |
Theoretical Resolution
Resolution in % of Resistance Value
|
R. Value |
LMP 50 |
LMP 100 |
LMP 150 |
LMP 200 |
LMP 250 |
|
1KΩ |
0.241 |
0.135 |
0.107 |
0.062 |
0.049 |
|
5KΩ |
0.117 |
0.067 |
0.054 |
0.035 |
0.035 |
|
10KΩ |
0.100 |
0.050 |
0.045 |
0.020 |
0.015 |

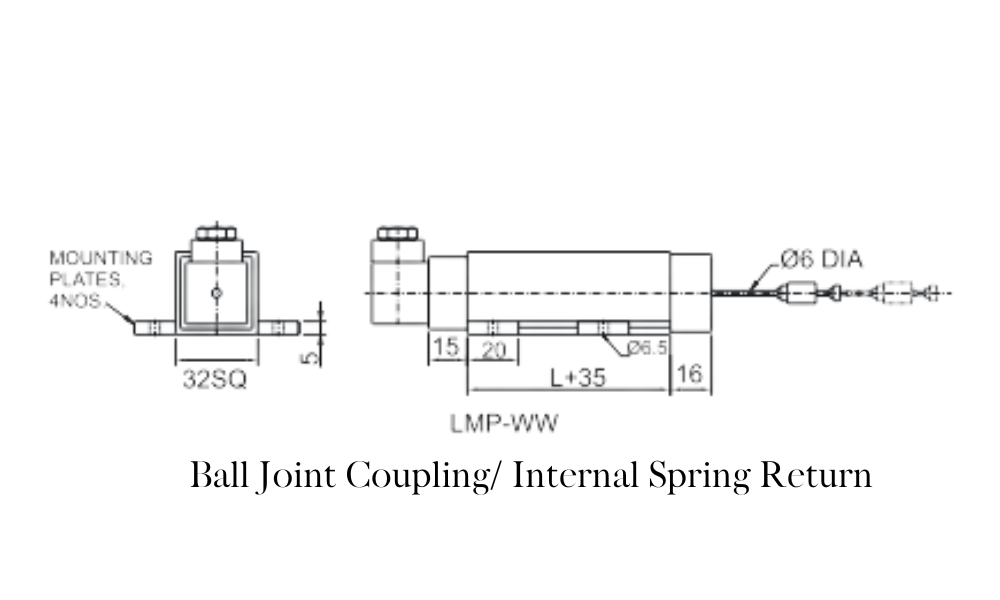

Technical Diagram
Click to view full size
Other Options
Click to view full size

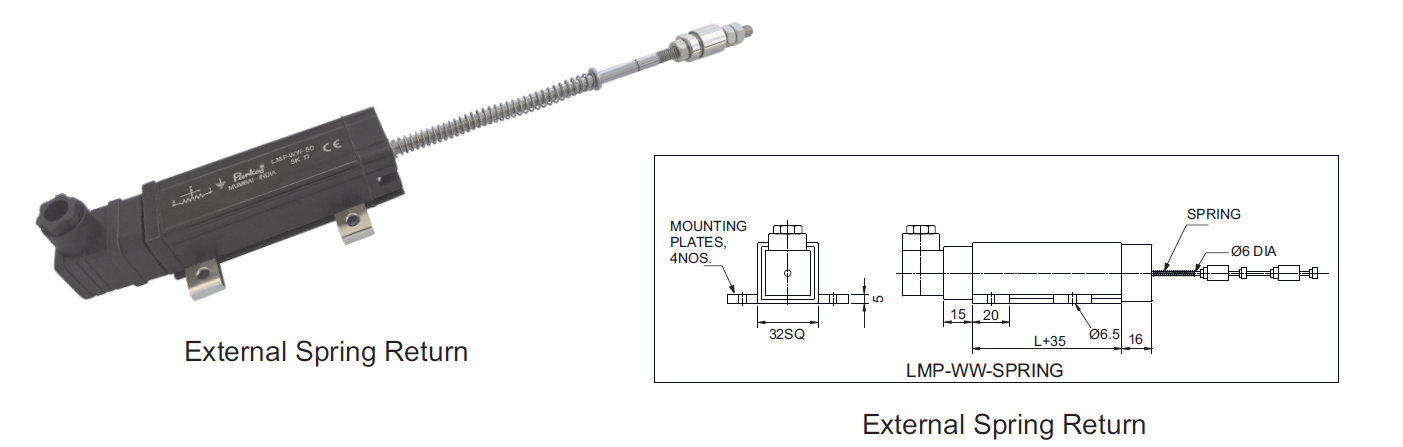

External Spring Return

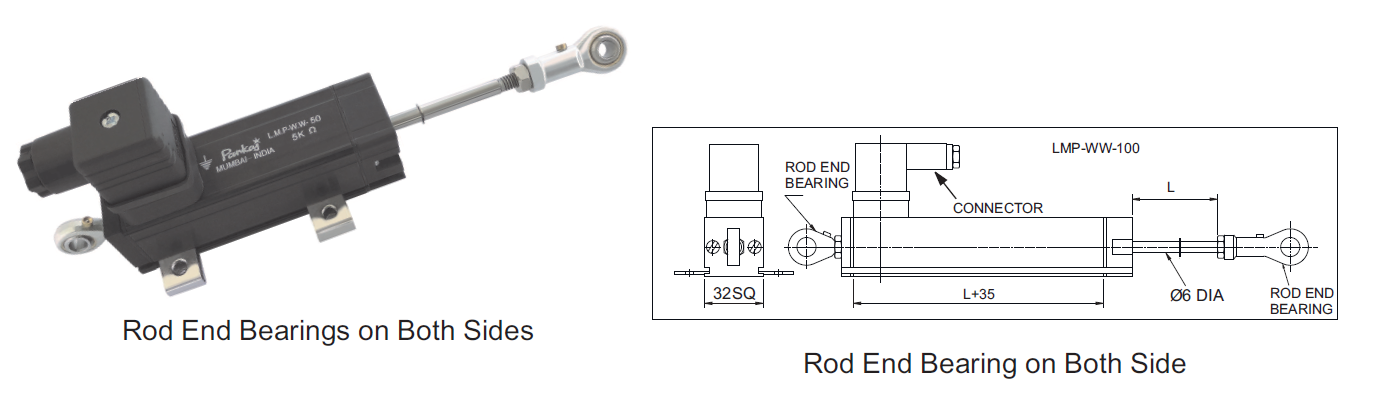

Rod End Bearings on Both Sides

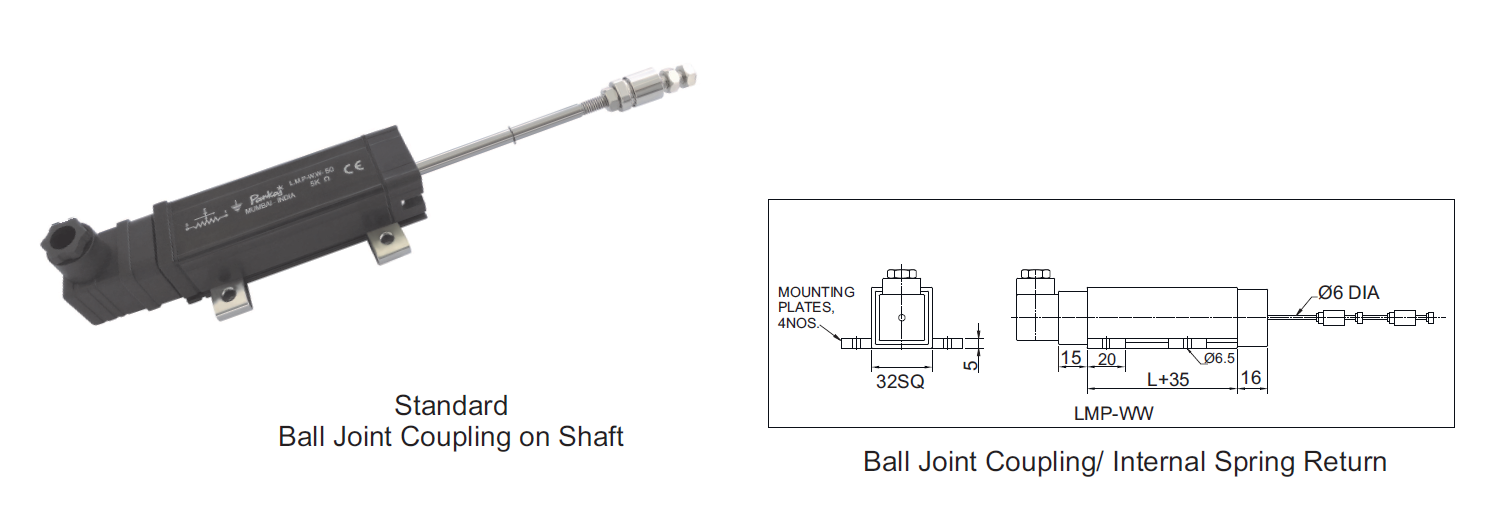

Standard Ball Joint Coupling on Shaft
